Rural Poly Compression Tee with Female BSP Threaded Branch – Sizes up to 2" x 2"

Rural Poly Compression Tee with a Female BSP Threaded Branch

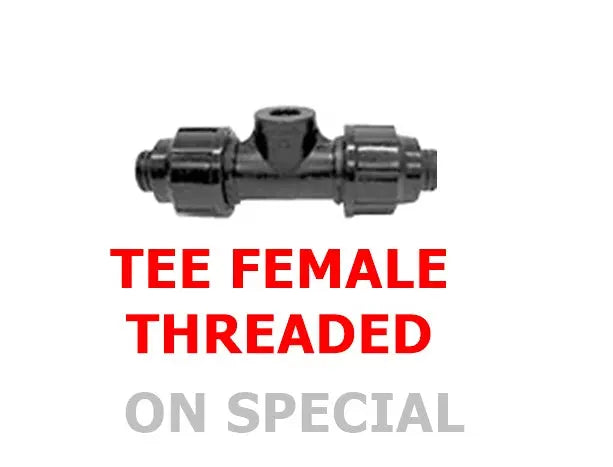

This rural poly compression female threaded tee joins two lengths of rural poly pipe on the run and provides a female BSP threaded outlet on the branch. It lets you add a tap, valve, riser, float valve or male adaptor at any point along a rural water line in a single fitting. It comes in a range of run and branch size combinations from ¾" x ¾" up to 2" x 2".

Tapping a Threaded Outlet Off a Rural Line

Rural poly mains often run long distances across a property, and the useful connections along them, like taps, trough valves and sprinkler risers, usually have male threads. This tee lets you cut into the line and add a threaded outlet in one step. The water carries on through the run, and the branch feeds whatever you screw into it, keeping the setup short, tidy and easy to service.

Matching Run and Branch Sizes

Each tee has two sizes: the run size, which matches your rural poly pipe, and the branch thread size. A ¾" x ¾" tee has the same size on both, while a 1" x ½" tee runs on 1" pipe with a smaller ½" outlet for a tap or valve. A 2" x 2" tee suits a large main with a full-size branch for another main line or a big valve. Choose the run size to match your pipe first, then the branch to match the fitting you are connecting.

Stock, Garden and Reticulation Branches

On farms, this tee is a common way to feed troughs, fill tanks and add standpipes along a main. Around the house and garden, it adds hose taps and reticulation zone valves to a supply line. With female threads on the branch, it works with ball valves, gate valves, hose cocks, risers, nipples and male poly adaptors.

Key Features and Benefits

• Rural poly compression on both run ends
• Female BSP threaded branch outlet
• Adds taps, valves, risers and float valves along a rural line
• Range of run x branch sizes from ¾" x ¾" to 2" x 2"
• Can be undone and reused
• UV stabilised for outdoor use
• Suits rural, farm, garden and reticulation water lines

Product Details

• Type: Female threaded tee
• Run connections: Rural poly compression
• Branch connection: Female BSP thread
• Suitable pipe: Rural poly pipe
• Sizes: Range of configurations including ¾" x ¾", 1" x ½" and 2" x 2"

Cutting In a Rural Tee

Turn off the water and drain the section. Cut out a short piece of pipe with pipe cutters so the ends are square and there is room for both to push fully into the tee. Clean and de-burr the pipe ends. Back off both nuts, push the pipes in to the internal stops and tighten each nut firmly by hand, finishing with a fitting spanner. Turn the branch to face the right way before the final tighten. Wrap the male thread of your tap, valve or riser with thread tape and screw it into the branch, firm but not forced. Stake tall standpipes or heavy valves so they do not lever the tee. Turn the water on slowly and check all three joints.

Frequently Asked Questions

How do you add a female BSP outlet to a rural poly pipe line?
Cut the rural poly line, push each end into the compression run ends of a rural female threaded tee and tighten the nuts. The branch then takes a male threaded tap, valve, riser or adaptor.

Which tee fitting connects two PE pipes with a threaded branch outlet?
A compression female threaded tee. For rural poly pipe, use a rural tee like this one. For metric PE pipe, use a metric compression female threaded tee, as the two pipe types are sized differently.

What do sizes like 1" x ½" mean?
The first size is the run, which matches your poly pipe, and the second is the female thread on the branch. A 1" x ½" tee fits 1" pipe and has a ½" threaded outlet.

Is it a push-fit fitting?
No. It is a compression fitting. The pipe pushes into the fitting, but the nut must be tightened to grip and seal the pipe.

Can I use it on metric poly pipe?
No. Rural and metric poly pipe have different outside diameters, so use a metric compression tee for metric pipe.

Where can I buy a rural poly female tee in Sydney?
Rural poly compression female threaded tees are available from BPG Supplies, with local pickup from our store in Bonnyrigg in Sydney's south-west and delivery across Australia.
